QI-Power-485-300-LV

Modbus Power Analyzer.

• Features
• Low Voltage High Current
• Measure Volts, Current, and Power
• Modbus RTU output
• DIN Rail Mount

• Datasheet

• Buy Online

• Configuration Software

• QI-Power-485 300 Amp LV Manual

• Standard Version 800V/50Amps

• Low Voltage Version 100V/50Amps

• 300 Amp Version 800V/300Amps

---

Modbus Power Analyzer.

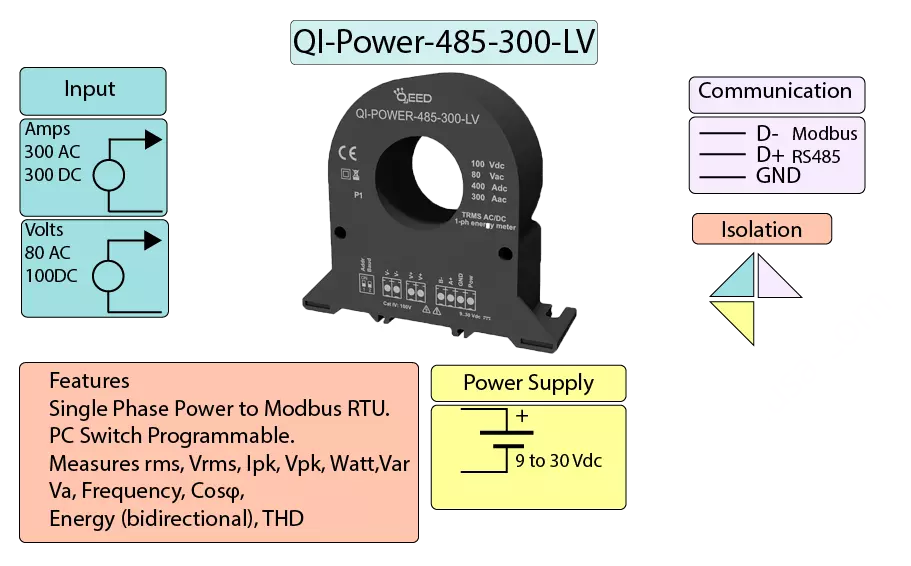

The QI Power 485 300 LV Modbus Power Analyzer can measure Voltage and Current and provide a ModBus RTU Power output. The Power Analyzer is programmed with the facile QI-Power-485 software downloadable from our download page. The Baud rate is changeable with the DIP switch on the front of the QI-Power-485-300-LV, other Baud rates are selectable with the software.

• The options are as below.
• QI Power 485 50A AC/DC 800V AC, 1000Vdc.
• QI Power 485 300 300A AC/DC 800V AC, 1000Vdc.
• QI Power 485 LV 50A AC/DC 80V AC, 100Vdc.
• QI Power 485 300 LV 300A AC/DC 80V AC, 100Vdc.

The unit can be mounted on a DIN rail or screwed terminal. Set up is by the free software available from our website. The DIP switch can set up the address and Baud rate. Isolation is provided up to 3000 Volts on the Current input and 4000 Volts on the Voltage input.

QI-Power- 85 Wiring Connections

Power Supply
Positive	Power
Negative	GND
Voltage Input
Positive	V+
Negative	V-
Modbus Output
Voltage Positive	A+
Voltage Negative	B-
