QI-Power-485-LV

Low Voltage Modbus Power Meter.

• Features
• Positive and Negative Power
• Ideal for Solar Panels
• Ideal for Battery Management
• DIN Rail Mount

• Datasheet

• Buy Online

• Configuration Software

• QI-Power-485 50 Amp LV Manual

• Standard Version 800V/50Amps

• 300 Amp Version 800V/300Amps

• 300 Amp Version 100V/300Amps

---

Low Voltage Modbus Power Meter.

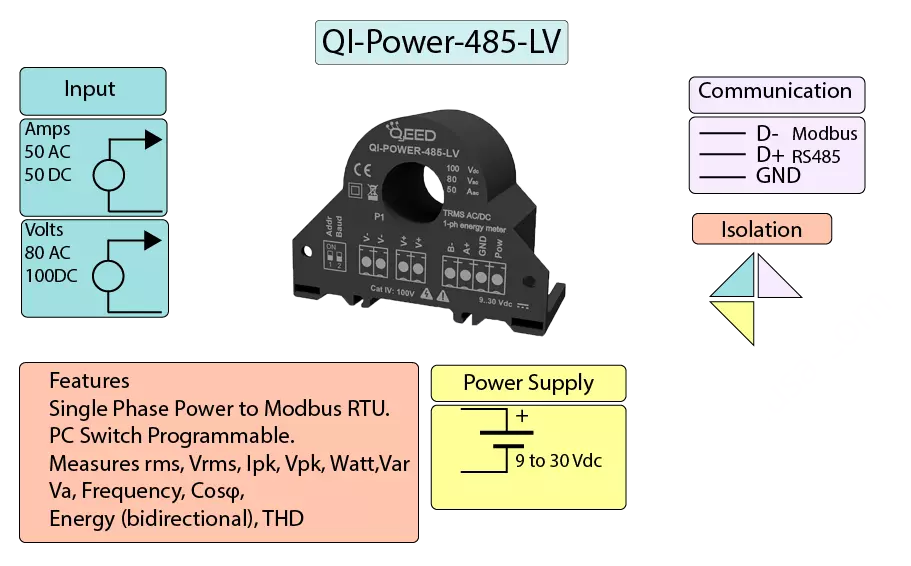

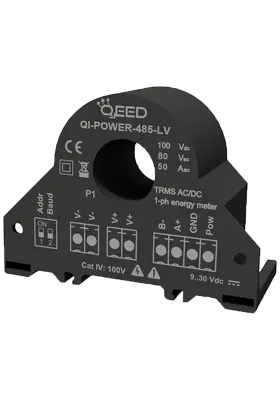

The QI Power 485 LV is designed to work with both Solar panels and battery management. The Modbus power meter and measure positive can negative power. The QI-Power-485 is a family of Single Phase Power Meters that can convert Current and Voltage to indicate the Power on a Modbus network. The QI Power 485 measures Current with a built-in Hall effect sensor by inserting the cable through the device.

• The options are as below.
• QI Power 485 50A AC/DC 800V AC, 1000Vdc.
• QI Power 485 300 300A AC/DC 800V AC, 1000Vdc.
• QI Power 485 LV 50A AC/DC 80V AC, 100Vdc.
• QI Power 485 300 LV 300A AC/DC 80V AC, 100Vdc.

The unit can be mounted on a DIN rail or screwed terminal. Set up is by the free software available from our website. The DIP switch can set up the address and Baud rate. Isolation is provided up to 3000 Volts on the Current input and 4000 Volts on the Voltage input.

QI-Power-485-LV Wiring Connections

Power Supply
Positive	Power
Negative	GND
Voltage Input
Positive	V+
Negative	V-
Modbus Output
Voltage Positive	A+
Voltage Negative	B-
