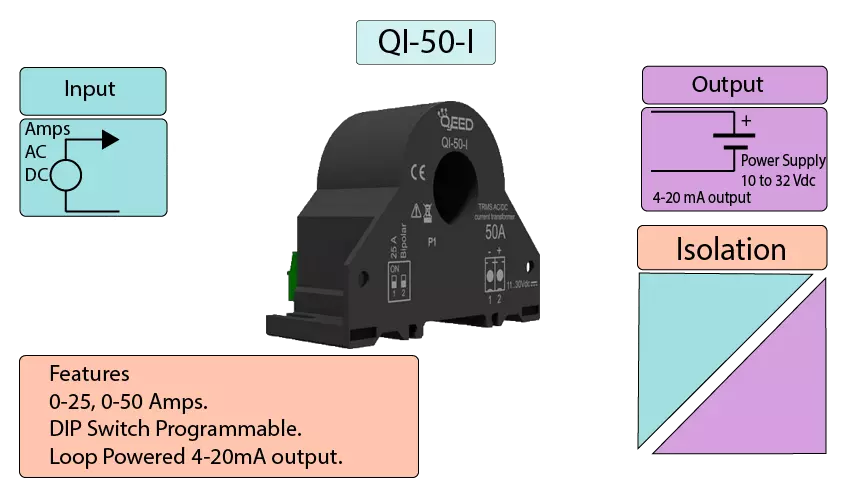

Loop Powered Current Transducer

The QI-50-I is a versatile solution for monitoring AC or DC currents in industrial applications. With its advanced features and robust design, it offers precise measurements and reliable performance in challenging environments.

Key Features:

1. Loop Powered Operation: The QI-50-I operates on a two-wire 4-20mA loop power supply, simplifying installation and reducing wiring complexity.
2. DIP Switch Programmable: Easily configure the transducer for your specific application using DIP switches, allowing for convenient adjustments without the need for additional tools.
3. Wide Input Range: With selectable full-scale ranges of 0-25A or 0-50A, the QI-50-I accommodates a variety of current monitoring needs, providing flexibility and adaptability.
4. High Resolution: Offering 12-bit resolution, the transducer delivers accurate measurements with fine granularity, ensuring precise monitoring of current levels.
5. Exceptional Accuracy: The QI-50-I boasts an impressive accuracy of 0.5%, providing reliable data for critical processes and systems.
6. Isolation Protection: Featuring 3000 Vac isolation between the input and signal output, the transducer eliminates the effects of ground loops, ensuring accurate measurements and enhancing safety in industrial environments.
7. DIN Rail Mount: The current transformer can be easily mounted on a DIN Rail strip, streamlining installation and saving valuable space in control panels or equipment enclosures.

Whether you're monitoring currents in motors, transformers, or other electrical systems, the QI-50-I delivers unmatched performance and versatility, making it the ideal choice for demanding industrial applications.

QI-50-I Specifications

QI-50-I Loop Powered Current Transducer FAQ

1. What is the power supply requirement for the QI-50-I transducer?

The QI-50-I operates on a two-wire 4-20mA loop power supply.

2. How can the QI-50-I be configured for specific applications?

The QI-50-I can be easily configured using DIP switches, allowing for convenient adjustments without the need for additional tools.

3. What are the selectable full-scale ranges for current measurement?

The QI-50-I offers selectable full-scale ranges of 0-25A or 0-50A, providing flexibility to accommodate various current monitoring needs.

4. What is the resolution of the QI-50-I transducer?

The QI-50-I transducer offers a resolution of 12 bits, ensuring accurate measurements with fine granularity.

5. What level of accuracy does the QI-50-I transducer provide?

The QI-50-I transducer boasts an impressive accuracy of 0.5%, ensuring reliable data for critical processes and systems.

6. How does the QI-50-I protect against ground loops?

The QI-50-I features 3000 Vac isolation between the input and signal output, effectively eliminating the effects of ground loops and enhancing safety in industrial environments.

7. What mounting option is available for the QI-50-I current transformer?

The QI-50-I current transformer can be easily mounted on a DIN Rail strip, simplifying installation and saving space in control panels or equipment enclosures.
