QE-Current-485-H

Modbus Harmonic Analyzer
  • Features
    • Harmonic analysis up to 63rd
    • Total harmonic Distortion
    • Current peak
    • Modbus output
    • Internal temperature measurement



Single Phase Modbus Harmonic Analyzer

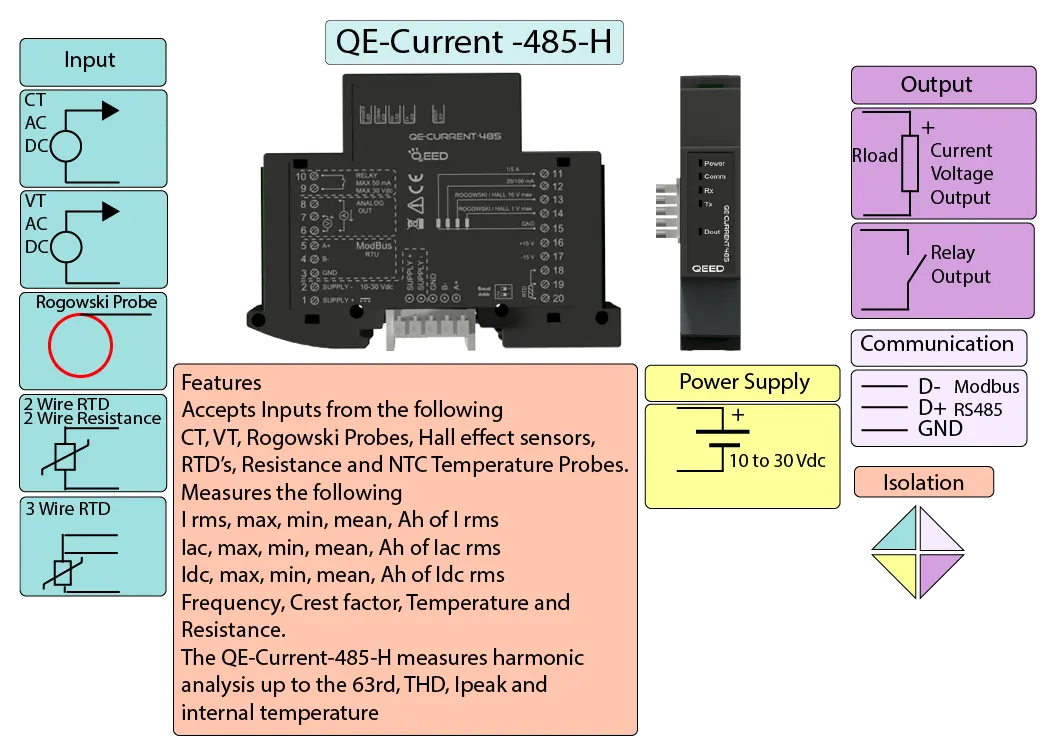

Single phase modbus harmonic analyzer infographics.

The QE Current 485 H from Qeed has all the features of the QE Current 485 and also measures the Harmonic analysis up to the 63rd, the Total Harmonic Distortion, and the Current peak. The QE Current 485 H also measures the internal temperature of the unit. The QE Current 485 H provides registers for the Total Harmonic Distortion and a separate Register for each of the Harmonics as a float, the current peak and the internal temperature.
It can obtain the information from AC/DC current and voltage transformers, Rogowski Probes, and Hall Effect Sensors.
The free software is used to set up the QE Current 485 H on the Modbus protocol.
The Single Phase Modbus harmonic analyzer can be mounted on a DIN rail, and power and Modbus network can be connected to via an optional T-BUS connector.

QE Current 485 H Specifications

Input
Rogowski Probes
Current Transformer 1 Amp 5 Amp
Current Transformer +/- 1 Vpk +/- 10 Vpk
Current Transformer 333 mV 100 mA ac/dc
Voltage Transformer +/- 1 Vpk +/- 10 Vpk
Hall Effect Sensor with +/-15 VDC power supply
Temperature 2 Wire RTD 3 Wire RTD
Temperature NTC 10 kohm NTC 100 kohm
Output Digital Modbus RTU SSR output 50 mA 30 Vdc
Output Analog 4-20 mA 0-20 mA 0-10 Vdc
Power Supply 10 to 30 Vdc
Current Consumption Modbus Output 35 mA Voltage Output 25 mA
Temperature Rating Operative 5°F +149°F - 15°C +65°C Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity (non condensing) 10-90%
Housing Material self-extinguishing
Dimensions 3.6" x 2.7 " x 0.7" 93 x 68.3 x 17.7 mm
Weight 2 oz 55 g
EMC Immunity: EN 61000-6-2. Emission: EN 61000-6-4.
Configuration DIP Switch Configurable

QE Current 485 H Wiring Connections

Power Supply
Positive Pin 2
Negative Pin 1
Output Modbus
GND Pin 3
B- Pin 4
A+ Pin 5
Output Analog 4-20mA
Positive Pin 8
Negative Pin 6
Output Analog 0-10V
Positive Pin 7
Negative Pin 6
Output Digital 30V 50mA
Pin 9
Pin 10
Input 1/5 Amp
Pin 15
Pin 11
Input 100mA
Pin 15
Pin 12
Input Rogowski, Hall Effect 10V
Pin 15
Pin 13
Input Rogowski, Hall Effect 1V
Pin 15
Pin 14
Input RTD
Common Pin 18
Common Pin 19
Uncommon Pin 20
Single phase modbus harmonic analyzer infographics.
